PointArena 2026

Efficient Visual Pointing for Embodied AI

Agent-Driven Data Synthesis · AttnRes Fine-Tuning · Iterative Correction · Molmo2-8B

2nd Place — 77.2% Overall

93.9%

Affordance

82.6%

Spatial

78.2%

Reasoning

63.0%

Steerability

Motivation

Three Bottlenecks

1. Data Scarcity

Steerable has ZERO public training data.

→ 55K processed, 37.6K trainable

2. Architecture Gap

Standard LoRA weakly couples coords with semantics.

→ AttnRes: cross-block attention

3. One-Shot Prediction

Single forward pass, no recovery.

→ Correction-based training

Molmo2-8B Zero-Shot

Model	Afford.	Spatial	Reason.	Counting	Steer.	Overall
Molmo2-8B	85.9%	76.9%	77.2%	73.0%	50.5%	72.7%

Innovation 1

Agent-Driven Data Synthesis Pipeline

22.3M

Raw QA

~2.5M

Has Coords

55,372

Processed

37,574

Trainable

3,815

Early Subset

Human

Pipeline A

Gemini API: 4-Stage Agent — Real Sample Trace + Per-Stage Images

Sample: "Point to the sign." (source_rank=320928, gemini-3-flash-preview-thinking). Image+data merged per stage below.

Per-Stage Visualization — "Point to the DOG NOSE." (Object Reference → rewritten)

STAGE 0 — Raw InputQuery: "Point to the DOG NOSE."
Label: "DOG NOSE"
Point: (x, y) pixel coordinates
Source: pixmo_points dataset
Status: Unprocessed raw record — enters the 4-stage Agent pipeline
🔍 Orange circle with radar rings = search/scan context

STAGE 1 — GatekeeperDecision: KEEP (keep=true)
Core target: "the dog nose"
Rule 1: Must be a pointing task (GROUNDING) — ✓
Rule 2: Reject pure QA (text answers) — not applicable
Rule 3: Accept empty/free space pointing — not applicable
Rule 4: Accept logical pointing — not applicable
🟢 Green bounding box + "TARGET LOCKED" = validated and kept

STAGE 2 — 5-Way ClassificationCategory: Object Reference
Thought: "The task is a straightforward request to point to a specific named object without any spatial, functional, or quantitative constraints."
5 classes: Affordance | Spatial Relation | Reasoning | Object Reference | Counting
Method: Evaluates cognitive bottleneck, not surface keywords
Model: gemini-3-flash-preview-thinking · prompt_tokens=457
🔵 Blue point + 5 category chips (ObjRef highlighted) = classification result

STAGE 3 — Multipoint DetectionResult: single_point = TRUE
Reason: "The instruction refers to a singular specific object ('the dog nose') and does not request multiple points, spots, or all instances."
Multi triggers: all / several / each / every / multiple / free space
This sample: Unambiguous single target — no multi-instance language
🟣 Purple x1 marker + crossed-out xN = single-point confirmed

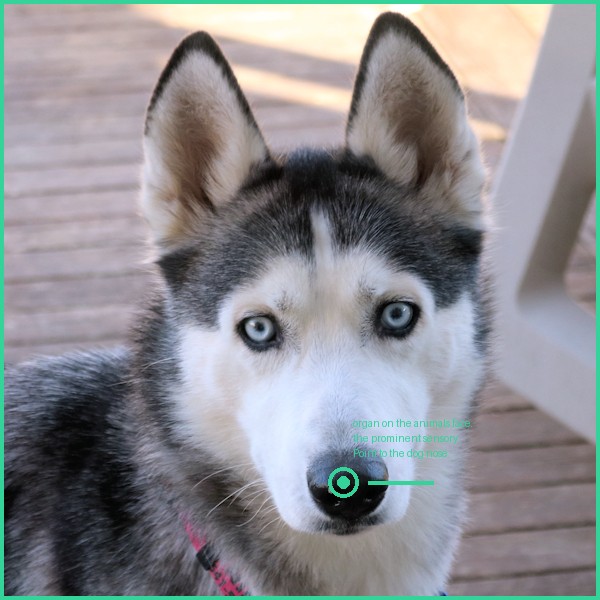

STAGE 4 — RewriteOutput: "Point to the dog's nose — the prominent sensory organ on the animal's face."
Method: Category-specific REWRITE_PROMPTS["Object Reference"] applied
Effect: Preserves object identity while enriching with semantic description
Affordance: Would add interaction/usage cues ("where you would grip...")
Reasoning: Would add world-knowledge context ("the uppermost body part...")
🟢 Green text = rewritten output with category-specific enrichment applied

10 Balanced Samples — Skill-Based Rewrites (3 Aff + 3 Spatial + 1 Reason + 3 ObjRef)

S1 [Affordance]: "Point to the place to hold coffee cup."
→ Point to the place for holding a coffee cup — the recessed area in the lid designed for st

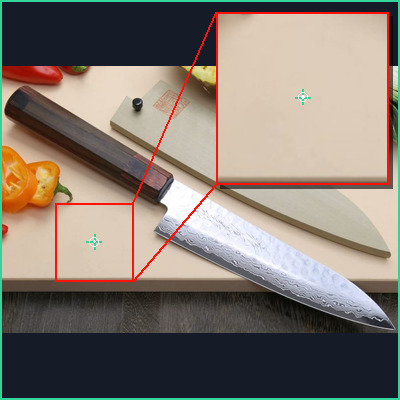

S2 [Affordance]: "Point to the area for cutting."
→ Point to the surface intended for cutting — the flat preparation area suitable for slicing

S3 [Affordance]: "Point to the handle where you would hold the knife"
→ Point to the knife handle — the gripping part of the kitchen tool designed for safe holdin

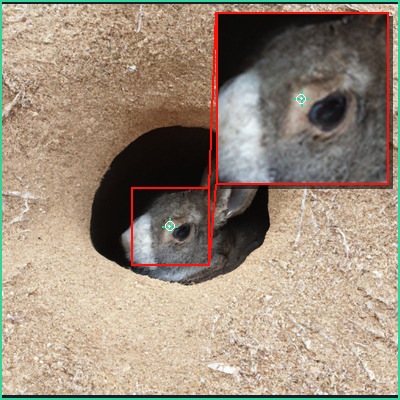

S4 [Spatial Rela]: "Point to the Bare area in front of rabbit left eye"
→ Point to the bare area located directly in front of the rabbit's left eye — the exposed sk

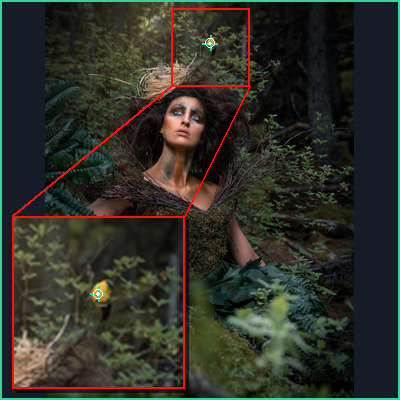

S5 [Spatial Rela]: "Point to the yellow bird on top of head."
→ Point to the yellow bird positioned on top of the head — the small decorative figure situa

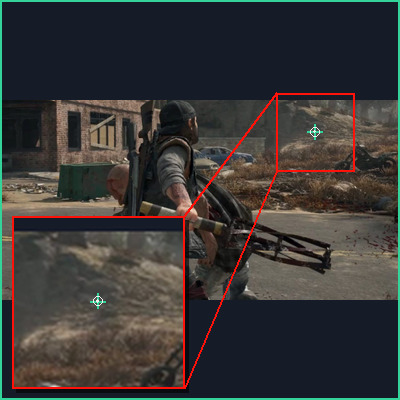

S6 [Spatial Rela]: "Point to the rock."
→ Point to the rock situated on the ground surface — the geological object positioned below

S7 [Reasoning]: "Point to the head."
→ Point to the head — the uppermost anatomical structure of the human body, identified as th

S8 [Object Refer]: "Point to the window."
→ Point to the window — the specific text field on the form where a

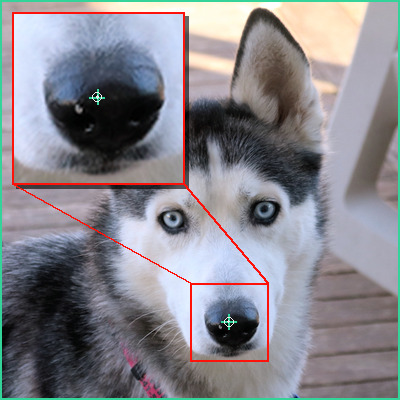

S9 [Object Refer]: "Point to the DOG NOSE."
→ Point to the dog's nose — the prominent sensory organ visible on the animal's face, identi

S10 [Object Refer]: "Point to the sign."
→ Point to the sign — the specific information board shown in the image, recognizable by its

10-Sample Data Table — Rewrite Applied per Category Skill

#	Query	Label	Gatekeeper	Category	Multi	Rewrite (skill-based)
1	Point to the place to hold coffee cup.	place to hold coffee	keep=true	Affordance	false	Point to the place for holding a coffee cup — the recessed area in the
2	Point to the area for cutting.	area for cutting	keep=true	Affordance	false	Point to the surface intended for cutting — the flat preparation area
3	Point to the handle where you would hold the knife.	handle where you wou	keep=true	Affordance	false	Point to the knife handle — the gripping part of the kitchen tool desi
4	Point to the Bare area in front of rabbit left eye.	Bare area in front o	keep=true	Spatial Relation	false	Point to the bare area located directly in front of the rabbit's left
5	Point to the yellow bird on top of head.	yellow bird on top o	keep=true	Spatial Relation	false	Point to the yellow bird positioned on top of the head — the small dec
6	Point to the rock.	rock	keep=true	Spatial Relation	false	Point to the rock situated on the ground surface — the geological obje
7	Point to the head.	head	keep=true	Reasoning	false	Point to the head — the uppermost anatomical structure of the human bo
8	Point to the window.	window	keep=true	Object Reference	false	Point to the window — the specific text field
9	Point to the DOG NOSE.	DOG NOSE	keep=true	Object Reference	false	Point to the dog's nose — the prominent sensory organ visible on the a
10	Point to the sign.	sign	keep=true	Object Reference	false	Point to the sign — the specific information board shown in the image,

Rewrites follow category-specific skills from rewrite_skill.md: Affordance adds functional/interaction cues, Spatial preserves geometric relations, Reasoning adds world-knowledge context, Object Reference adds distinguishing features.

Pipeline B

Qwen3-8B Local: 3-Class + Rules + Dedup

Same 4-stage Agent via vLLM locally. 3 classes (Affordance/ObjRef/Reasoning). 18 keyword + 14 regex rules refine output. Dedicated Counting pipeline.

10 Rule-Application Samples

#	Input Query	3-Class Result	Rules Triggered	Action
1	Point to the place to hold coffee cup.	Affordance	"place to hold" keyword	Keep · Dedup check
2	Point to where you would type in search bar.	Affordance	"where you would" + "type"	Keep · Dedup check
3	Point to the handle to open door.	Affordance	"handle to open" keyword	Keep · Dedup check
4	Point to all cups in the image.	Counting → None	"all" → multi-instance	Route to Counting pipeline
5	Point to the existing point + 5px right.	Object Reference	"existing point"/"cursor"	Force ObjRef (special rule)
6	Point to the direction the car is moving.	Reasoning	"direction" + "moving"	Keep · reasoning_candidate_cue
7	Point to the most likely exit.	Reasoning	"most likely"	Keep · reasoning pattern
8	Point to each person wearing a hat.	Counting → None	"each" → multi-instance	Route to Counting pipeline
9	Point to the wall.	Object Reference	— (no cue)	Keep · cross-check vs Pipe A
10	Point to the floor.	Spatial → None	spatial domain	Drop (B keeps 3 classes)

Pipeline C

Steerable Pipeline: 5 Sub-Types (LLM-FREE)

5 task types with distinct pipeline logic. 700 templates x 7 groups, SAM3 masks, CC path verification. The main accepted set has 10K verified samples, with a 2K reserve batch.

SAM3 Mask Generation

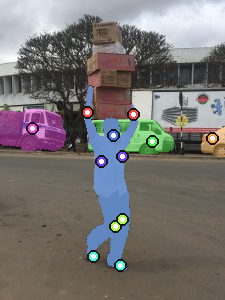

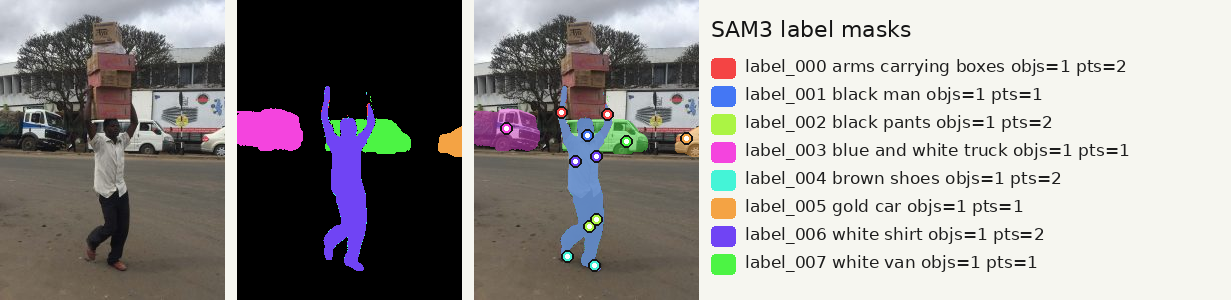

SAM3 Preview: 8 objects from control points. Each color = one instance mask.

Overlay on source image. CC path verification checks along directional arrow.

10 Steerable Samples — 2 per Sub-Type

Type 1: axis_fixed (85%)

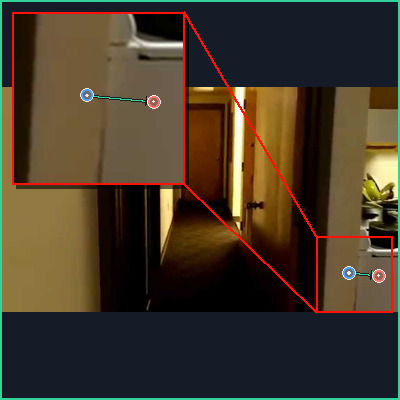

S1: "Use the blue point as your reference and point to the white stove to t"
anchor=[0.873,0.826] → target=[0.946,0.838]

S2: "Take the blue point as the guide and find the quilt fabric to the righ"
anchor=[0.204,0.751] → target=[0.429,0.779]

Type 2: nearest_among (5%)

S3: "Using the blue point only for distance, show the nearest buritto."
anchor=[0.128,0.443] → target=[0.184,0.311]

S4: "Treat the blue point as your guide and locate the bud nearest to it."
anchor=[0.931,0.953] → target=[0.775,0.926]

Type 3: nearest_axis (5%)

S5: "Treat the blue point as your guide and identify the nearest boulder to"
anchor=[0.484,0.510] → target=[0.342,0.485]

S6: "From the blue point, identify the nearest gold square to the right of "
anchor=[0.803,0.453] → target=[0.936,0.454]

Type 4: then_axis (2.5%)

S7: "Proceed up from the blue point, then turn left to select the dog."
anchor=[0.942,0.730] → target=[0.810,0.557]

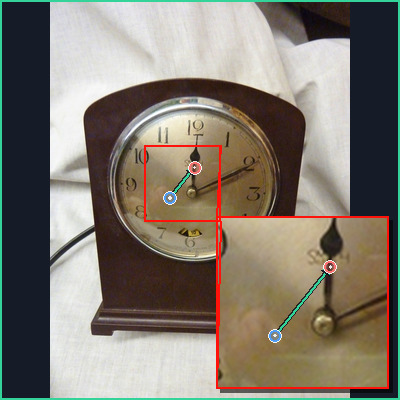

S8: "From the blue point, shift up, then shift right, to the hour hand."
anchor=[0.401,0.495] → target=[0.482,0.419]

Type 5: from_other (2.5%)

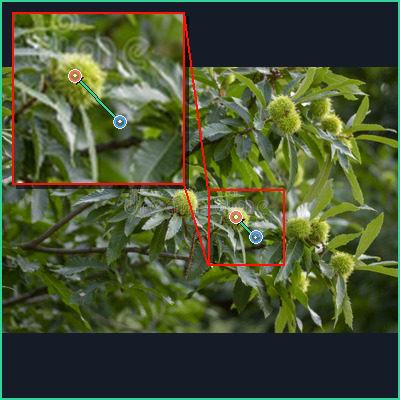

S9: "Move diagonally up-left from the chestnut tree until you reach the gre"
anchor=[0.639,0.641] → target=[0.590,0.564]

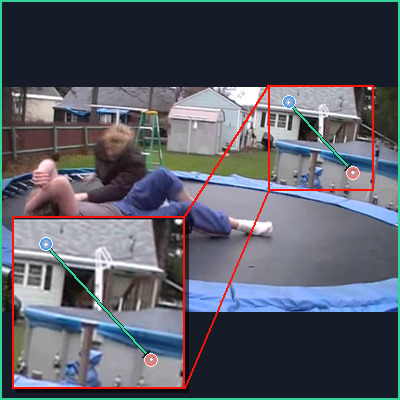

S10: "From the roof, move diagonally down-right until you reach the pool."
anchor=[0.722,0.068] → target=[0.883,0.381]

5 Sub-Type Pipeline Distribution

#	Task Type	Ratio	Samples	Pipeline Logic
1	move_until_axis_fixed	85%	8,500	anchor → straight direction → first target on same axis
2	nearest_among_objects	5%	500	anchor → direction scan → nearest object in path
3	nearest_axis_constrained	5%	500	anchor → direction + axis constraint → nearest in region
4	move_then_axis_limited	2.5%	250	anchor → move step → axis-limited target search
5	move_until_from_other	2.5%	250	anchor → axis from other object reference → target

10 Steerable Samples — Data Table

#	Task Type	Anchor	Target	Question
1	axis_fixed	[0.873,0.826]	[0.946,0.838]	Use the blue point as your reference and point to the white stove
2	axis_fixed	[0.204,0.751]	[0.429,0.779]	Take the blue point as the guide and find the quilt fabric to the
3	nearest	[0.128,0.443]	[0.184,0.311]	Using the blue point only for distance, show the nearest buritto.
4	nearest	[0.931,0.953]	[0.775,0.926]	Treat the blue point as your guide and locate the bud nearest to
5	nearest_axis_constrain	[0.484,0.510]	[0.342,0.485]	Treat the blue point as your guide and identify the nearest bould
6	nearest_axis_constrain	[0.803,0.453]	[0.936,0.454]	From the blue point, identify the nearest gold square to the righ
7	then_axis	[0.942,0.730]	[0.810,0.557]	Proceed up from the blue point, then turn left to select the dog.
8	then_axis	[0.401,0.495]	[0.482,0.419]	From the blue point, shift up, then shift right, to the hour hand
9	from_other	[0.639,0.641]	[0.590,0.564]	Move diagonally up-left from the chestnut tree until you reach th
10	from_other	[0.722,0.068]	[0.883,0.381]	From the roof, move diagonally down-right until you reach the poo

Innovation 2

AttnRes Architecture

Design

Gate-init=0 · Every 4 layers · LoRA r=64 + AttnRes (810 keys) · Dual-backbone (Steerability only)

Steerability Sweep

Config	Default	AttnRes	Δ
0-shot	—		50.5%
n=2	59.5%	63.5%	+4.0

Left: Standard Molmo2 keeps the normal top-to-bottom block flow. Right: AttnRes adds a tight side branch beside the enhanced blocks; the dashed history arrows stay next to the AttnRes modules and point right into the module edge.

Claim: AttnRes is a targeted fix for anchor-relative reasoning, not a universal backbone.

The clean architecture comparison is the n=2 setting: Default reaches 59.5% Steerability, while AttnRes reaches 63.5%. The same report also shows the boundary condition: too little Steerable signal underuses the module, while too much repetition overfits.

Ablation: architecture

Default n=259.5%

AttnRes n=263.5%

Same Steerable weight, different architecture. The +4.0pp gain supports the cross-block residual module.

Parameter sweep: data weight

n=1Default +2.5

n=2AttnRes +4.0

n=4Default +2.0

AttnRes needs enough anchor-relative data, but repeated Steerable samples hurt generalization.

Boundary: do not over-compose

Pure AttnRes63.5%

+Anchor enc.62.0%

+Iter corr.62.0%

Adding PointMLP+ViT on top of AttnRes does not improve peak Steerability, so the module should stay focused.

Attribution: Steerability instructions require propagating an anchor state through directional steps. Absolute point encoders help locate coordinates, but they do not replace cross-layer state flow. That is why ABC-C reaches 62.5% while pure AttnRes_n2 reaches 63.5%.

Detailed AttnRes Evidence Tables ablation + sweep

Steerability Sweep: When AttnRes Helps

Steerable Weight	Default Best	Default Step	AttnRes Best	AttnRes Step	Winner	Meaning
n=1 (2,536 steer)	62.5%	2k	60.0%	18k	Default +2.5	signal too small for extra module
n=2 (5,072 steer)	59.5%	10k	63.5%	14k	AttnRes +4.0	best cross-block regime
n=4 (10,000 steer)	60.0%	14k	58.0%	2k	Default +2.0	repetition overfits

AttnRes + Anchor Encoding Ablation

Experiment	Architecture	Extra Point Encoding	Correction Training	Best Steer	Best Ckpt/Round	Takeaway
AttnRes_n2 sweep	AttnRes	None	No	63.5%	ckpt-14000	pure AttnRes LoRA is strongest
steer_base	AttnRes	PointMLP + ViT	No	62.0%	ckpt-16000 R0	anchor encoding does not add gain
steer_iter	AttnRes	PointMLP + ViT	Yes	62.0%	ckpt-2000 R2	iter helps R2 stability, not peak
ABC-C reference	Default	PointMLP + ViT + CoordMap	Yes	62.5%	ckpt-2000 R2	encoding helps, but below AttnRes_n2

Why Dual Backbone Is Necessary

Model	Afford.	Counting	Reason.	Spatial	Steer.	Interpretation
steer_base ckpt-16000 R0	91.9%	16.3%	76.7%	77.9%	62.0%	Steerable-only recipe destroys Counting
steer_iter ckpt-2000 R2	87.4%	23.5%	76.7%	77.9%	62.0%	correction recovers rounds, not category balance

Innovation 3

ABC Encoding

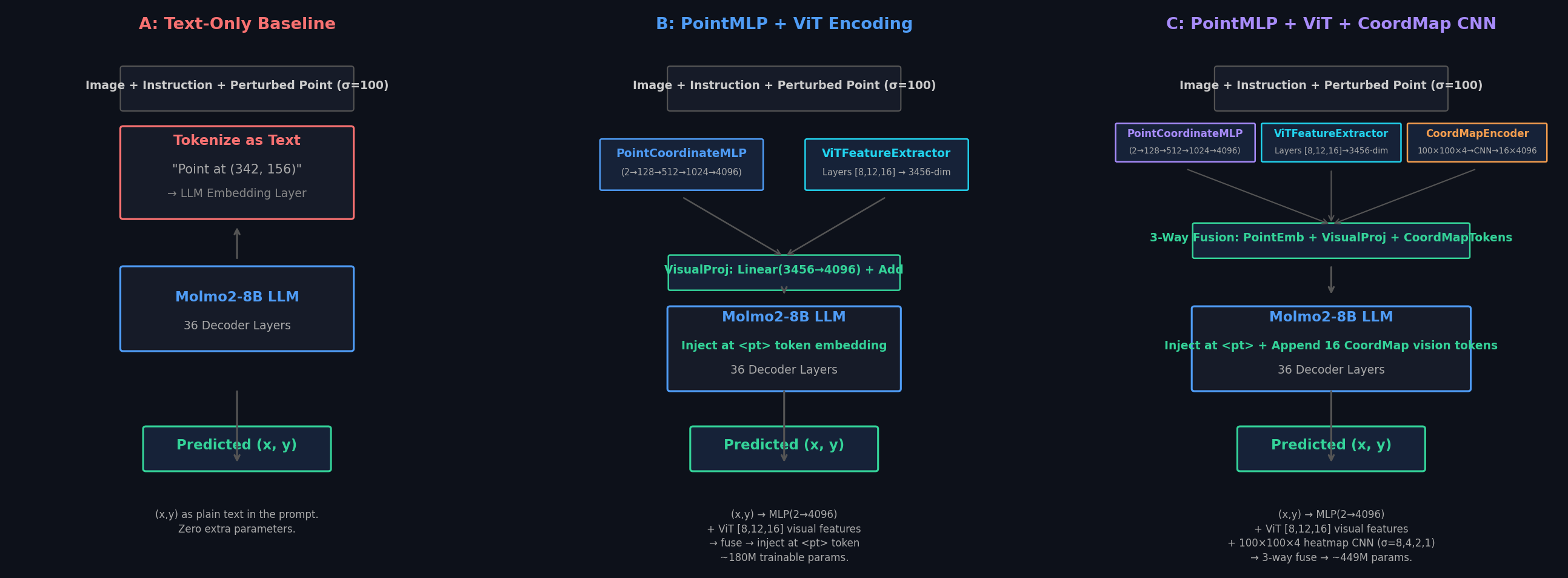

A: text-only correction. B: PointMLP + ViT visual features. C: B plus CoordMap CNN.

Claim: the main gain comes from grounding perturbed coordinates in visual features.

A text-only correction learns the wording but cannot reliably bind the perturbed point to image evidence. B injects a learned point embedding plus ViT features and gives the core gain. C adds a coordinate map, which mostly helps Spatial but has lower ROI.

Ablation: text-only is insufficient

A overall72.3%

B overall75.5%

Gain+3.2pp

Same correction task, but B injects point + visual features instead of relying on text coordinates.

Where B helps most

Counting+7.2pp

Reasoning+7.3pp

Afford.+3.0pp

Point-conditioned visual features help multi-point perception and spatial-semantic reasoning.

C is useful, but targeted

C overall77.0%

C vs B+1.5pp

Spatial+3.6pp

CoordMap mainly contributes dense spatial context; Reasoning is slightly better with B.

Core ABC Ablation

Module	Point Representation	Overall	Counting	Reasoning	Spatial	Interpretation
A	text-only coordinates	72.3%	61.7%	72.5%	80.0%	weak binding between text coords and image features
B	PointMLP + ViT features	75.5%	68.9%	79.8%	79.0%	best cost/performance point encoding
C	B + CoordMap CNN	77.0%	69.9%	79.3%	82.6%	best final score; Spatial-specific gain

Attribution: the loss report shows fixed protocol tokens and label text are already learned, while coordinate digits dominate 91-95% of the supervised CE. The model needs a representation that aligns coordinates with visual evidence, not more text-only coordinate formatting.

Detailed ABC Evidence and Failure Analysis ablation + attribution

Correction Rounds: Iteration Is Not the Main Source of Gain

Architecture	R0 Best	R1 Best	R2 Best	Best Round	Observed Effect
A Text-only	72.3%	72.2%	72.0%	R0	late training improves text-only but remains below B/C
B PointMLP+ViT	75.5%	75.5%	75.5%	R0/R1/R2 tie	point encoding already resolves most correction signal
C +CoordMap	77.0%	75.5%	76.7%	R0	CoordMap is strongest early; extra rounds slightly decay

B vs C ROI

Metric	B Best	C Best	C Gain
Overall	75.5%	77.0%	+1.5
Counting	68.9%	69.9%	+1.0
Reasoning	79.8%	79.3%	-0.5
Spatial	79.0%	82.6%	+3.6
Steerability	61.5%	62.5%	+1.0

Training Objective Diagnosis

Signal	Step 2000	Step 20000	What It Shows
Total CE	0.6235	0.5474	loss keeps falling
Overall eval	73.42%	73.01%	metric does not rise
Coord loss share	91.19%	95.38%	coordinates dominate errors
Label loss	0.5425	0.1757	text label already learned
Coord ones loss	2.1359	2.0295	fine digits remain hard

SinglePOS Negative Control

Encoding	Format	Best Overall	Counting	Status	Lesson
Baseline D	Molmo2 HTML continuous coords	73.42%	67.3%	stable	keep native coordinate protocol
singlepos original	N POS_x POS_y...	64.56%	40.8%	learns slowly	discrete tokens need strong structure
singlepos_long	POS_x POS_y...	13.95%	1.5%	failed	no count prefix breaks structure
legacy_long	1 x y 2 x y...	56.11% -> 13.24%	32.1% -> 0.5%	epoch-2 collapse	sequence can loop without total count
count_long	N 1 x y 2 x y...	14.66%	2.6%	failed	extra structure dilutes POS learning

Final Results

Multi-Expert Routing

Claim: the final score is the end of a proof chain, not a single checkpoint.

The reports break into three evidence types. Ablations show which module removes which failure mode. Parameter sweeps only tune how much signal each module gets. Negative controls reject simpler substitutes. The final ensemble wins because it routes each category to the expert that matches its error pattern.

Evidence map: `ABC_analysis.md` and `steerability_sweep_report.md` are module evidence; `runs_overview_report.md` is hyperparameter tuning; `metadata_prompt_variants_A_F_report.md` and `singlepos_experiments_report.md` are negative controls; `output_D_lr2e4_ga16_training_eval_loss_report.md` and `output_D_lr2e4_ga16_counting_error_analysis.md` explain why the gains do or do not transfer.

Step 1 · data

55,372 → 37,574

Audited pools feed balanced runs

The cloud inventory has 53,772 unique sample IDs and 37,574 trainable rows. The 3,815-row set is only the early semantic baseline subset.

Step 2 · ablation

72.3 → 75.5 → 77.0

ABC fixes coordinate-image binding

Text-only A underperforms. B gets the core gain from PointMLP + ViT. C mostly buys Spatial, so B is the better ROI while C is the higher ceiling.

Step 3 · tuning

59.5 → 63.5

AttnRes only helps at the right weight

n=2 is the sweet spot. n=1 underuses the module and n=4 overfits. That makes AttnRes a targeted fix for anchor-relative Steerability, not a universal backbone.

Step 4 · routing

77.2%

Category experts win

Affordance C 93.94, Counting C 70.41, Reasoning B 78.24, Spatial C 82.56, Steerable AttnRes 63.00. These are local expert-selection scores; the final overall is the submitted benchmark score.

Proof Table 1: Data Base Before Model Changes

Funnel view: cloud inventory first, experiment subsets second

Processed outputs

55,372

Unique IDs

53,772

Trainable rows

37,574

Mixed D subset

12,680

Early subset

3,815

The 3,815-row bar is a deliberate early semantic subset, not the total data volume. Later D-format and steerability runs resample larger balanced subsets from the audited cloud pools.

Evidence	Count	Operation	Mark	Analysis
Processed cloud outputs	55,372	merge Gemini + Qwen + SAM-clean batches	cloud pool	shows the full multi-batch inventory, not only the early filtered-data run
Unique sample IDs	53,772	deduplicate repeated workflows	clean base	removes repeated attempts before counting usable samples
Trainable completed rows	37,574	latest judgement completed/accepted	module output	usable rows available before experiment-specific balancing
Early Gemini trainable rows	24,415	semantic cache only	early pool	valid for the original Pipeline A baseline, not the full server count
Early FT subset	3,815	763 per category x 5	early balance	small controlled subset used for the early semantic comparison

Attribution: the data module is not just more rows. The full cloud pool provides 37,574 trainable rows; the 3,815-row set is a deliberately balanced early subset where Spatial's 763 eligible examples define the quota.

Proof Table 2: Module Ablation, Not Hyperparameter Tuning

Overall ablation: A to B is the core jump

A text-only

72.3%

B PointMLP+ViT

75.5%

C + CoordMap

77.0%

B vs A is the module proof (+3.2pp). C vs B is a smaller, targeted spatial refinement (+1.5pp).

Where the gain comes from

Counting B-A

+7.2

Reasoning B-A

+7.3

Spatial C-B

+3.6

Overall C-B

+1.5

The biggest jumps are Counting and Reasoning from visual point grounding; CoordMap mainly helps Spatial.

Module	Representation	Overall	Afford.	Counting	Reason.	Spatial	Steer.	Mark	Analysis
A	text-only coordinates	72.3%	90.9%	61.7%	72.5%	80.0%	61.5%	baseline	wording can be learned, but coordinate-image binding is weak
B	PointMLP + ViT	75.5%	93.9%	68.9%	79.8%	79.0%	61.5%	core ablation	main gain comes from point-conditioned visual grounding
C	B + CoordMap CNN	77.0%	94.4%	69.9%	79.3%	82.6%	62.5%	targeted boost	best final score, but its distinctive value is Spatial

Attribution: B over A is the strongest module proof: Counting +7.2pp and Reasoning +7.3pp indicate that visual point features solve a grounding problem. C is still useful, but its extra value is concentrated in Spatial (+3.6pp), so the page should describe C as targeted rather than universally better.

Proof Table 3: AttnRes Architecture and Steerable Weight Sweep

Default vs AttnRes by steerable weight

n=1 Default

62.5

n=1 AttnRes

60.0

n=2 Default

59.5

n=2 AttnRes

63.5

n=4 Default

60.0

n=4 AttnRes

58.0

Only n=2 is the clean architecture proof: same data weight, AttnRes +4.0pp over default.

Interpretation of the sweep

n=1 signal

too low

n=2 signal

sweet spot

n=4 repeat

overfit

Peak step

14k

The sweep is not just ranking models; it explains the usage rule: enough steerable data for AttnRes, but not repeated to saturation.

Steerable Weight	Default Best	Default Step	AttnRes Best	AttnRes Step	Winner	Evidence Type	Interpretation
n=1 / 2,536 steer	62.5%	2k	60.0%	18k	Default +2.5	boundary	too little steerable signal underuses AttnRes
n=2 / 5,072 steer	59.5%	10k	63.5%	14k	AttnRes +4.0	architecture proof	same data weight, cross-block residual attention wins
n=4 / 10,000 steer	60.0%	14k	58.0%	2k	Default +2.0	overfit boundary	repetition hurts generalization and narrows the useful regime

Attribution: AttnRes should be claimed narrowly. The n=2 row proves the architecture helps anchor-relative Steerability; n=1 and n=4 explain why it must be paired with the right data weight and early stopping.

Proof Table 4: Negative Controls and Failure Attribution

Rejected shortcuts

No meta prompt

71.38

Best prompt D

71.69

SinglePOS best

64.56

SinglePOS fail

14.66

Prompt-only and token-format shortcuts do not explain the final gain; most remain below the trained modules.

Counting error anatomy @ ckpt-2000

Success

132/196

Wrong count

50/196

Out of mask

44/196

Invalid parse

5/196

Counting fails structurally: wrong number of points and mask misses dominate; parser failures are small.

Test	Best / Key Result	Counting	Steer.	Mark	What It Rules Out	What It Proves
Prompt metadata A-F	D = 71.69%, C = 71.38%	66.84%	50.5%	small delta	prompt-only coordinate injection is not enough	training modules are needed, not just coordinate wording
SinglePOS original	64.56%	40.8%	53.0%	negative control	discrete POS tokens do not solve coordinates by themselves	output structure and coordinate grounding remain bottlenecks
SinglePOS failed variants	13.95% / 14.66%	1.5% / 2.6%	12.5% / 13.0%	collapse	format changes can collapse parsing and point count	native Molmo2 coordinate protocol is safer
Loss diagnosis	CE 0.6235 -> 0.5474, eval 73.42 -> 73.01	loss highest 0.6200	label loss near 0	metric gap	lower token CE does not imply better mask accuracy	coordinate digits dominate 91-95% of supervised CE
Counting error anatomy	132/196 success	50 wrong count, 44 out mask	N/A	routing cause	errors are not mainly parser failures	Counting needs a category expert for multi-point structure

Attribution: the negative controls prevent overclaiming. The method advantage is not from a lucky prompt or a coordinate-token trick; it comes from modules that match the real failure modes.

Data module

0-shot72.7%

Pipeline A75.3%

Trainable37,574

LLM cleaning, local filtering, steerable synthesis, and balanced resampling lift semantic categories before model specialization.

ABC module

A overall72.3%

B overall75.5%

C overall77.0%

Point-conditioned visual features recover coordinate grounding. B is the best ROI point; C is the best Spatial point.

Negative controls

Prompt D71.69%

SinglePOS best64.56%

Count valid fmt82.65%

Prompt-only changes buy little. Discrete POS variants mostly fail. The 82.65% Counting number is valid-output rate, not mask accuracy.

Final Routing Chart: Category Experts

Per-category expert accuracy

Affordance · C

93.94%

Counting · C

70.41%

Reasoning · B

78.24%

Spatial · C

82.56%

Steerable · AttnRes

63.00%

These category bars are local validation evidence for choosing experts. The official submitted overall score is reported separately as 77.2%.

#	Category	Expert	Accuracy	Why This Expert	Mark
1	Affordance	C	93.94%	C keeps the highest semantic grounding score	route
2	Counting	C	70.41%	multi-point structure benefits from visual + CoordMap grounding	route
3	Reasoning	B	78.24%	B has better ROI and avoids C's slight Reasoning drop	B wins
4	Spatial	C	82.56%	CoordMap's clearest gain is Spatial +3.6pp over B	C wins
5	Steerable	AttnRes	63.00%	anchor-relative reasoning needs cross-block state flow	AttnRes

Official submitted overall: 77.2%

Category values above are local validation scores used for routing, not a re-summed 982-sample ensemble.

Complete Evolution: What Each Stage Adds

Overall progression

Molmo2 0-shot

72.7%

+ Pipeline A

75.3%

+ IterCorr B

75.5%

Final Ensemble

77.2%

The final gain is not monotonic in every category. Pipeline A improves semantic categories but hurts Counting/Steer; later modules recover hard categories, then routing selects per-category experts.

Experiment	Afford.	Spatial	Reason.	Count.	Steer.	Overall	Analysis
Molmo2 (0-shot)	85.9%	76.9%	77.2%	73.0%	50.5%	72.7%	strong base, but Steerability is the first clear bottleneck
+ Pipeline A	93.9%	83.1%	82.9%	67.3%	49.5%	75.3%	data synthesis improves semantic pointing but does not solve hard structured categories
+ IterCorr B	93.9%	79.0%	79.8%	68.9%	61.5%	75.5%	point-conditioned visual grounding recovers Steerability and improves coordinate binding
Final Submission	93.9%	82.6%	78.2%	70.4%	63.0%	77.2%	official overall score; category cells show local expert-selection evidence

Why routing wins: Counting errors are mostly wrong counts and out-of-mask points; Steerability needs cross-block anchor state; Spatial benefits most from CoordMap. The expert map is therefore a consequence of the failure analysis, not a cosmetic ensemble trick.

Detailed Diagnostics by Evidence Type supporting evidence

Read these tables as support for the proof chain: cloud-pool auditing and balancing explain the training base; LR/GA and checkpoint timing are parameter sweeps; prompt-only and SinglePOS are negative controls; Counting error tables are failure attribution for category experts.

Cloud Data Inventory Behind the Training Sets

Stage	Count	Filter / Module	Role
Processed outputs	55,372	Gemini + Qwen + SAM-clean cache	full audited cloud inventory
Unique sample IDs	53,772	latest-workflow selection	deduplicate repeated processing roots
Trainable completed rows	37,574	completed / accepted latest judgement	usable pool before experiment balancing
Early Gemini cache	24,415	semantic LLM pass only	source for the original filtered-data baseline
Early balanced subset	3,815	763 per category x 5	controlled semantic LoRA comparison

Category Balancing: Why the Selector Matters

Category	Eligible	Selected	Dropped	Why It Matters
Affordance	1,778	763	1,015	avoid overfitting easy category
Counting	12,895	763	12,132	massive raw skew needs quota control
Object Reference	4,224	763	3,461	keeps semantic pointing balanced
Reasoning	2,478	763	1,715	preserve harder cognitive tasks
Spatial Relation	763	763	0	scarce class defines the quota

Final source mix: 3,715 pixmo_points + 100 where2place. Robopoint was abundant but not selected after balancing.

Filtered-Data FT Grid: Best Runs

Run	LR / GA	Best Step	Overall	Afford.	Spatial	Reason.	Steer.	Counting	Invalid
lr1e4_ga16	1e-4 / 16	2000	75.25%	93.94%	83.08%	82.90%	49.5%	67.35%	9
lr2e4_ga16	2e-4 / 16	2000	74.85%	90.91%	81.54%	78.24%	54.0%	69.90%	4
lr1e4_ga8	1e-4 / 8	2000	73.83%	93.43%	83.08%	76.17%	52.0%	64.80%	7
lr2e4_ga8	2e-4 / 8	2000	14.87%	31.82%	16.92%	10.88%	12.5%	2.04%	103

Higher LR with GA=8 collapses output format; stable LoRA needs the larger effective batch.

Prompt-Only Metadata Injection: Limited Gain

Variant	Coordinate Prompt	Overall	Steer.	Invalid	Conclusion
A	natural-language pixel coords	69.55%	40.5%	1	extra wording hurts Steerability
B	natural language + Molmo2 HTML	69.04%	38.0%	1	format match alone is insufficient
C	none	71.38%	49.5%	1	baseline prompt
D	direct legacy coordinate list	71.69%	50.5%	3	only prompt variant above no-injection
E	bare HTML points tag	68.33%	34.5%	2	empty tag disrupts generation
F	normalized bracket list	70.57%	45.5%	1	still below D/no-injection

Prompt engineering cannot replace the training modules; direct D format is the only useful metadata prompt.

Counting Error Anatomy

Metric @ ckpt-2000	Value
Counting samples	196
Success	132 / 196 = 67.35%
Wrong number of points	50 / 196 = 25.51%
At least one point out of mask	44 / 196 = 22.45%
Correct count but out of mask	14 / 146 = 9.59%
Wrong count and out of mask	30 / 50 = 60.00%
Invalid parse	5 / 196 = 2.55%

Counting failures are mostly structured multi-point mistakes, not only parsing errors.

Counting-Specialized Model

Setting	Value
Architecture	AttnRes + C wrapper
Balance	Counting x2, others x1
Train data	18,516 samples
Best checkpoint	ckpt-1000
Counting valid output	162 / 196 = 82.65%
Wrapper params	PointMLP + ViT + CoordMap CNN
Use in story	format diagnostic, not accuracy

Source: model_handover_AttnRes_n2.md and SUBMISSION_REPORT.md. The 82.65% value is valid-output rate; its Counting accuracy was lower than the C route's 70.41%.

Checkpoint Timing: Early Stop Beats Longer Training

Run / Model	Early Best	Late Score	Loss Trend	Lesson
lr1e4_ga16	75.25%@2k	69.65%@16k	train loss 0.553 -> 0.311	eval overfits while CE falls
output_D_lr2e4_ga16	73.42%@2k	73.01%@20k	CE 0.6235 -> 0.5474	digit loss drop does not equal mask accuracy
ABC-C	77.0%@2k R0	73.8%@20k R0	extra CoordMap peaks early	select early checkpoint for final expert
AttnRes_n2	63.5%@14k	60.0%@20k	post-peak decline	Steerability needs category-specific early stop
